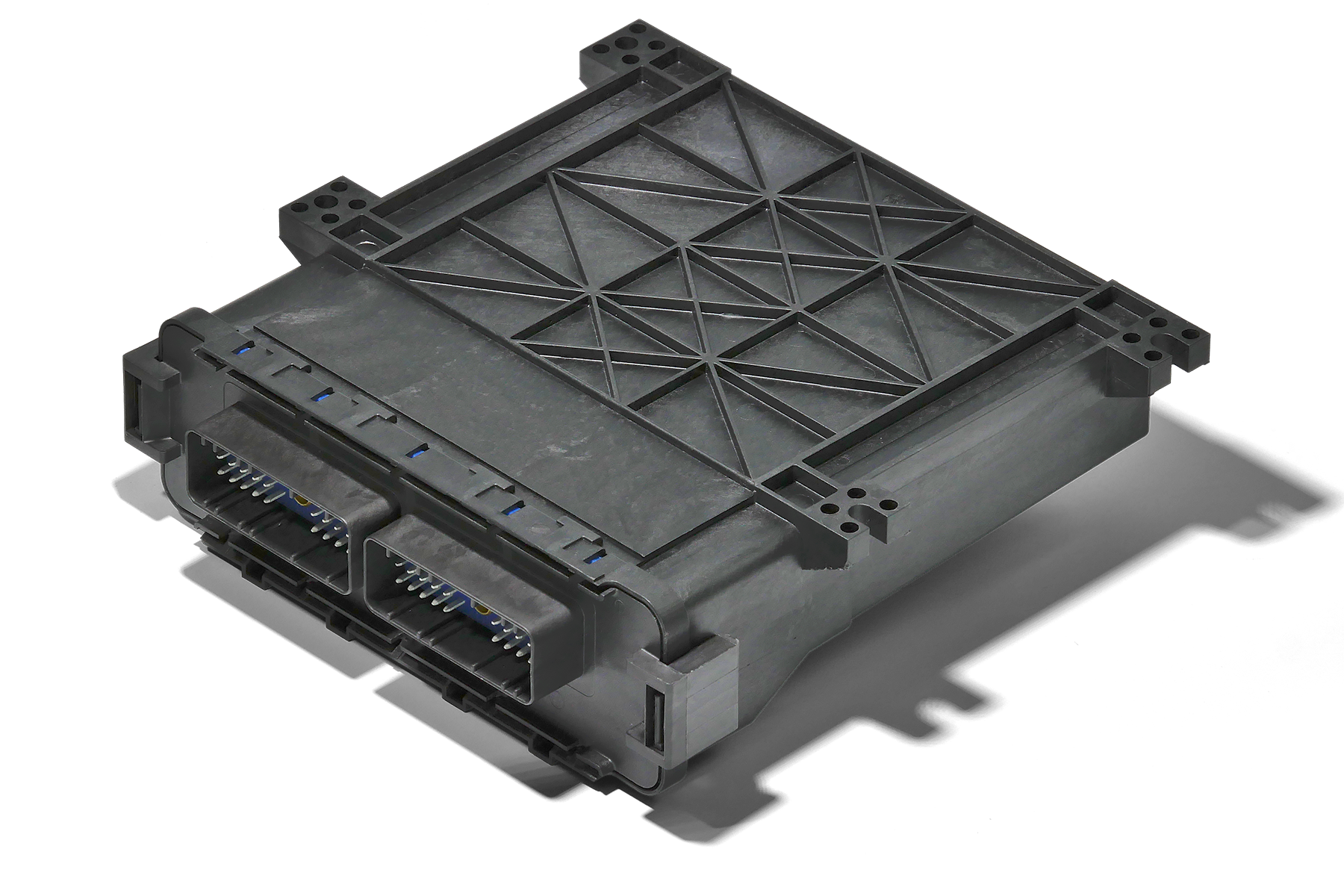

VCU1200
60-Pin Vehicle Control Unit60-Pin Vehicle Control Unit60-Pin Vehicle Control Unit
Summary
The VCU1200 is a fully programmable, ruggedized embedded control module intended for use in a variety of system and vehicle control applications. User applications are given full access to system resources and peripherals with an easy-to-use hardware abstraction written in C++.
A number of input and output stages provide the discrete interface with the larger system. Two CAN 2.0B ports are fully configurable to allow for communication with other devices. Each port includes a software selectable termination resistor for maximum system flexibility. User applications are programmed onto the device using the CAN1 or CAN2 interface and the VCU1200 bootloader, which can be accessed via the Stafl Systems Bootloader Utility.
DOWNLOADS: VCU1200 Brochure (PDF)
FEATURES
5 High Side Driver Outputs
2 CAN 2.0B Communication Interfaces
1 RS485 Communication Interface
Off-processor Real Time Clock with Power Backup
2 MB of Additional Off-processor Flash
Internal MicroSD Card Option
PWM Generation Capability
Quadrature Encoder Input Capability
Internally Generated 5V Power Output for External Sensors and Devices
Suitable for 12V or 24V Nominal Systems
ESD and Voltage Rail Surge Protection
IP67 Rated Enclosure
48 Pin Ruggedized Embedded Control Module
Fully Programmable with User Application Code
32-bit ARM M4F Microprocessor
Up to 80 MHz Clock
Hardware Floating Point Unit
256 kB of Flash
32 kB of RAM
9 Digital Inputs
4 Analog Inputs (12-bit resolution)
2 5V Full Scale Range
2 30V Full Scale Range
3 Thermistor Inputs
11 Low Side Relay Driver Outputs
Specifications
| Parameter | Conditions | Min | Typical | Max | Units |
|---|---|---|---|---|---|
| Power Input Voltage | 7 | 32 | V | ||
| Input Current | 15 | mA | |||
| Operating Temperature Range | -40 | 85 | °C | ||
| Driver Output Current | 3 | 800 | mA | ||
| Ingress Protection | IP67 | ||||
| Device Mass | 595 | g |
