Battery Packs
High-performance battery packs designed for aviation, marine and stationary storage.
Stafl Systems battery packs are designed for demanding applications using the latest cell technology from our exclusive partnership with AER CELL™, providing exceptional energy density in a small package.
BATTERY PACK PRODUCT CATALOG
Stafl Systems battery packs deliver complete with a charging dock and mating connector for immediate implementation into your application.
Custom Low Voltage (48 V)
Integrated precharge and main contactor control circuit
Communication with Vehicle Control Unit (VCU) via standard CAN Bus Interface, with multiple supported baud rates
Standard output messages include cell voltages/temperatures, pack voltage/current, and fault flags
Runs internal balancing or commands received from VCU
May be installed externally in appropriately sealed enclosure
For pricing and availability, contact us.
Custom High Voltage (400 V / 800 V)
Ability to monitor and balance up to 12 series cells
Allows system to be configured for packs with 12-256 series cells
Yields excellent measurement accuracy across common pack conditions
May be installed externally in appropriately sealed enclosure
For pricing and availability, contact us.

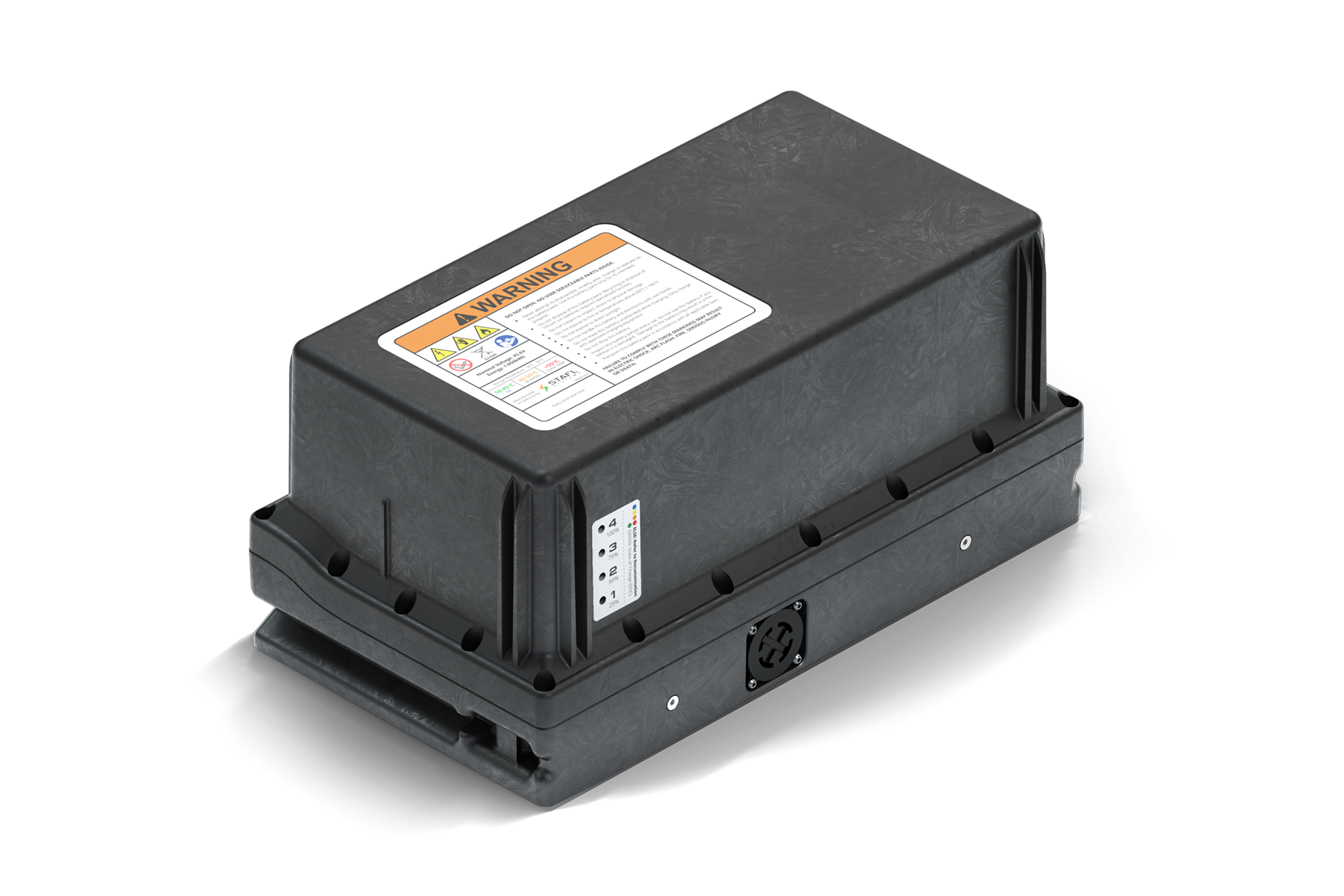

BAT1400 (1.1 kWh Pack)
Ability to monitor and balance up to 12 series cells
Allows system to be configured for packs with 12-256 series cells
Yields excellent measurement accuracy across common pack conditions
May be installed externally in appropriately sealed enclosure
For pricing and availability, contact us.
1X Master BMS Unit
Communicates with outside system via CAN 2.0B
Manages pre-charging and contactors
Monitors pack voltages
UNRIVALED ACCURACY
The Stafl Systems modular BMS1000 Series Battery Management System consists of one BMS Master Module and an application-specific number of BMS Monitor Modules.
1-64X Monitor BMS Units
Measures cell voltages and temperatures
Balances cells
Communicates with Master BMS via internal data link
precise engineering
Features
Scalable from 12 to 256 Series Cells
Temperature Sensor for Each Cell Group
Supports up to 1000V Systems
Low Steady State Cell Voltage Measurement Error (<2.0 mV)
Individual Cell Group Balancing Resistors
Externally Powered for Low Quiescent Battery Current
High Current Shunt Monitor Circuit for Accurate Pack Current Sensing
Pack Level Voltage Monitoring
Integrated Isolation Fault Monitor Circuit
SEE ALSO: 📄 Battery Management Systems Flyer
Typical System Diagram
hIGH VOLTAGE
While a vehicle’s power system sees a battery pack as a single, high-voltage battery — charging and discharging the entire battery pack at once — the battery control system must consider each battery’s condition independently.
COUNTLESS APPLICATIONS
LOW VOLTAGE
A proper system will continuously monitor important battery parameters for low voltage applications, while dealing with the varying power demands of the many aspects of operation and optimizing the usage of the battery.
stationary storage
The service life of a battery pack is tied to the weakest battery in the system. In the balancing process, each of the batteries within the string is maintained at optimal voltage levels, eliminating the ill-effects of improper charging.
